Synchronization in 5G ensures precise timing and coordination across the network, enabling key technologies like TDD, beamforming, and ultra-low latency.
- 5G TDD networks utilise the same frequency for both uplink (UL) and downlink (DL), with time slots separating them. If base stations are out of sync, UL/DL transmissions collide, resulting in interference and dropped connections. Requires μs-to-ns precision (achieved via PTP 1588v2).
- Massive MIMO and Beamforming Depend on Phase Alignment, as beamforming directs signals to users using phased antenna arrays. So, why does sync matter? Antennas must transmit and receive in perfect phase alignment (error < 100 ns), and without synchronisation, as beams misalign, reducing coverage and speed.
- Network Slicing Requires Predictable Latency, and Sync Ensures Deterministic Timing Across Slices (e.g., Factory Robots Need Sync to Avoid Collisions).

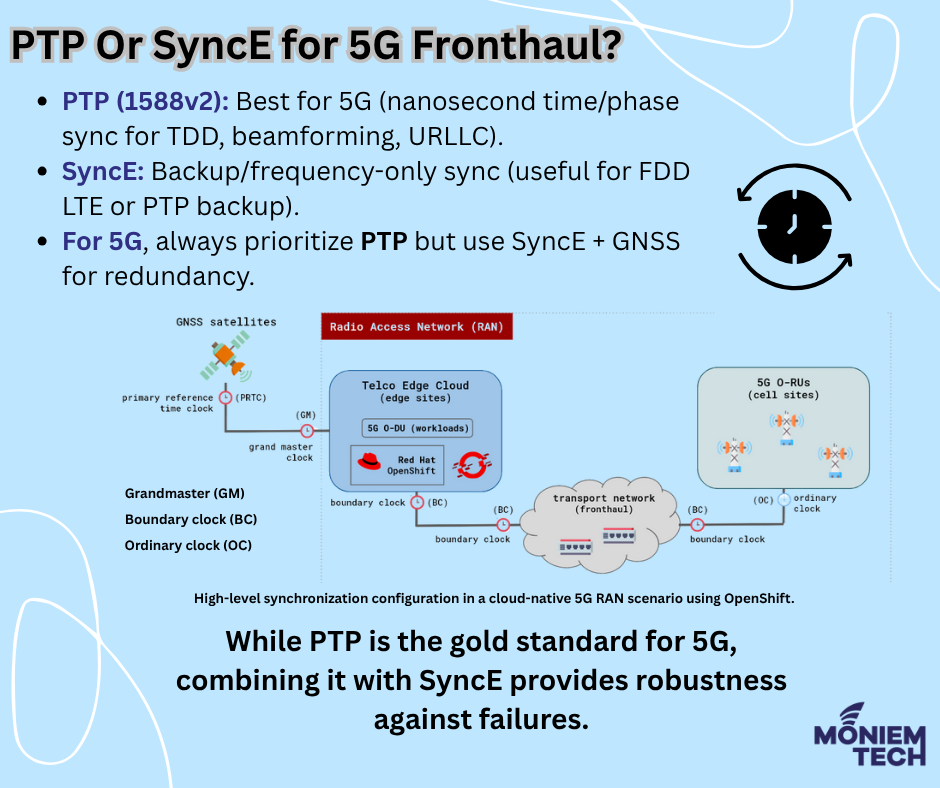

SyncE Only Provides Frequency Sync (No Phase/Time Sync)
SyncE delivers clock frequency synchronization (±50 ppb accuracy) by locking Ethernet PHY layers to a master clock.
But 5G needs more:
- Phase alignment (for beamforming, TDD).
- Absolute time sync (for coordinated transmissions, network slicing).
Best Practice
Deploy PTP 1588v2, SyncE, and GNSS for enhanced resilience.
